how to change position "delivery address" in invoice template

[Fertig]

Hi,



anybody knows how can i change the position of deliver adress AND billing to adress?



fom --> company details --> deliver adress --> billing to adress



CHANGE TO (position chnage



deliver adress --> billing to adress --> company details

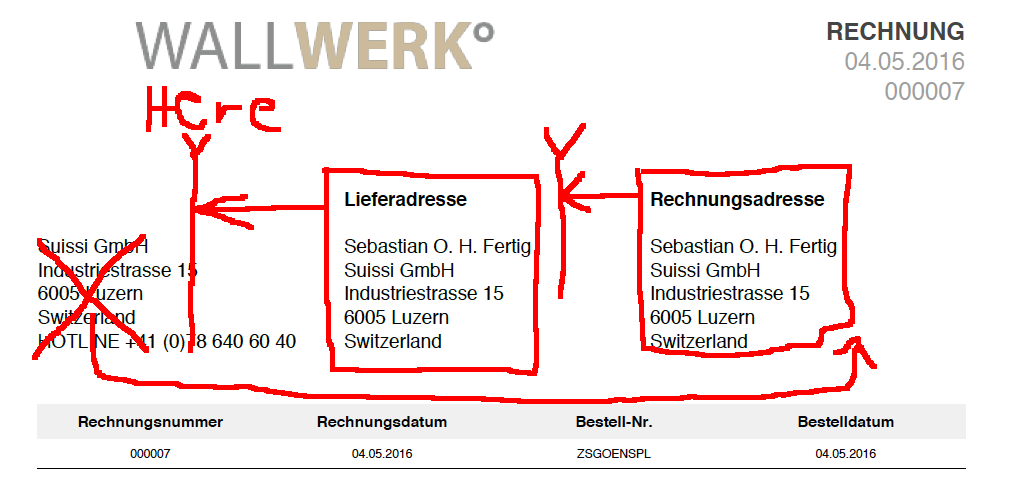

se attached picture



thanks for help



best reg



seb[



attachment=149147:unspecified.png]

[erouvier29]

Simply reorder the <td>s in /pdf/invoice.addresses-tab.tpl (or in a copy of it to /themes/xxx/pdf/).

[Fertig]

Simply reorder the <td>s in /pdf/invoice.addresses-tab.tpl (or in a copy of it to /themes/xxx/pdf/).

Hey erouvier29,



thanks for your answer, can you write detail, cause i am not sure what you mean.



thank you so much



regards



seb

[erouvier29]

Original file /pdf/invoice.addresses-tab.tpl should contain:

<table id="addresses-tab" cellspacing="0" cellpadding="0">
    <tr>
        <td width="33%"><span class="bold"> </span><br/><br/>
            {if isset($order_invoice)}{$order_invoice->shop_address}{/if}
        </td>
        <td width="33%">{if $delivery_address}<span class="bold">{l s='Delivery Address' pdf='true'}</span><br/><br/>
                {$delivery_address}
            {/if}
        </td>
        <td width="33%"><span class="bold">{l s='Billing Address' pdf='true'}</span><br/><br/>
            {$invoice_address}
        </td>
    </tr>
</table>

Change it with:

<table id="addresses-tab" cellspacing="0" cellpadding="0">
    <tr>
        <td width="33%">{if $delivery_address}<span class="bold">{l s='Delivery Address' pdf='true'}</span><br/><br/>
                {$delivery_address}
            {/if}
        </td>
        <td width="33%"><span class="bold">{l s='Billing Address' pdf='true'}</span><br/><br/>
                 {$invoice_address}
        </td>
        <td width="33%"><span class="bold"> </span><br/><br/>
            {if isset($order_invoice)}{$order_invoice->shop_address}{/if}
        </td>
    </tr>
</table>



[Fertig]

wow cool ! thanks.



and whats about the position, so the deliver adress position must be approx 5cm from left border and the billing to adress border right begins in the middle of the paper/template.

the company adress must be at the right end. like i make a screenshot from the positions in the first post.

[Fertig]

mabe works with: original: 33% / 33% and 33% can i change it to:



5% / 50% 75% ?!

[erouvier29]

Not really clean, but you can adjust the horizontal positions like this for example:

<table id="addresses-tab" cellspacing="0" cellpadding="0">    <tr>
        <td width="15%"></td>
        <td width="30%">
            {if $delivery_address}
                <span class="bold">{l s='Delivery Address' pdf='true'}</span><br/><br/>
                {$delivery_address}
            {/if}
        </td>
        <td width="30%">
            <span class="bold">{l s='Billing Address' pdf='true'}</span><br/><br/>
            {$invoice_address}
        </td>
        <td width="25%" style="text-align:right">
            <span class="bold"> </span><br/><br/>
            {if isset($order_invoice)}{$order_invoice->shop_address}{/if}
        </td>
    </tr>
</table>

Shop address elements are right justified

Sum of widths shall be 100%



[Fertig]

Hey,



thanks for your answer, that woks !!

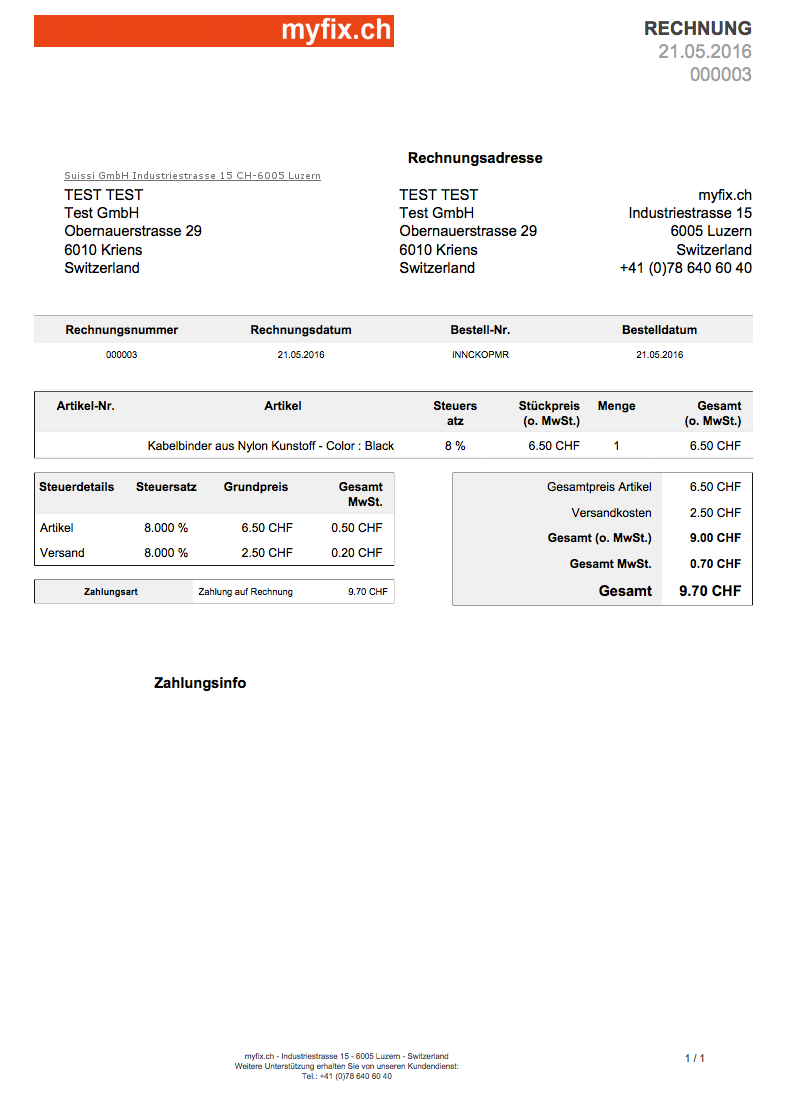

is it possible making the deliver adress and billing to like in the picture "NEW.png" ?



best regards from Lucerne





Not really clean, but you can adjust the horizontal positions like this for example:

<table id="addresses-tab" cellspacing="0" cellpadding="0">    <tr>
        <td width="15%"></td>
        <td width="30%">
            {if $delivery_address}
                <span class="bold">{l s='Delivery Address' pdf='true'}</span><br/><br/>
                {$delivery_address}
            {/if}
[attachment=149664:NEW.png]

        </td>
        <td width="30%">
            <span class="bold">{l s='Billing Address' pdf='true'}</span><br/><br/>
            {$invoice_address}
        </td>
        <td width="25%" style="text-align:right">
            <span class="bold"> </span><br/><br/>
            {if isset($order_invoice)}{$order_invoice->shop_address}{/if}
        </td>
    </tr>
</table>

Shop address elements are right justified

Sum of widths shall be 100%



[erouvier29]

Yes:

1. Decrease the size of left margin block and increase the one of delivery block

2. Remove label "Delivery address"

3. Insert "Suisii GmbH..." with desired formatting

<table id="addresses-tab" cellspacing="0" cellpadding="0">
    <tr>
        <td width="5%"></td>
        <td width="40%">
            {if $delivery_address}
                <span class="bold"> </span><br/>
                <span style="font-size:0.8em;color:#CCC;text-decoration:underline">Suissi GmbH...</span><br/>
                {$delivery_address}
            {/if}
        </td>
        <td width="30%">
            <span class="bold">{l s='Billing Address' pdf='true'}</span><br/>
            <span style="font-size:0.8em"></span><br/>
            {$invoice_address}
        </td>
        <td width="25%" style="text-align:right">
            <span class="bold"> </span><br/>
            <span style="font-size:0.8em"> </span><br/>
            {if isset($order_invoice)}{$order_invoice->shop_address}{/if}
        </td>
    </tr>
</table>

[Fertig]

that looks very cool, but i think now i have a problem...



since i use your code, i cant chance any adressen?! ...



everytime when i get a order all customers have the same adresse. when i change the adress, he dont change the adress to a new adress :-(







Yes:

1. Decrease the size of left margin block and increase the one of delivery block

2. Remove label "Delivery address"

3. Insert "Suisii GmbH..." with desired formatting

<table id="addresses-tab" cellspacing="0" cellpadding="0">
    <tr>
        <td width="5%"></td>
        <td width="40%">
            {if $delivery_address}
                <span class="bold"> </span><br/>
                <span style="font-size:0.8em;color:#CCC;text-decoration:underline">Suissi GmbH...</span><br/>
                {$delivery_address}
            {/if}
        </td>
        <td width="30%">
            <span class="bold">{l s='Billing Address' pdf='true'}</span><br/>
            <span style="font-size:0.8em"></span><br/>
            {$invoice_address}
        </td>
        <td width="25%" style="text-align:right">
            <span class="bold"> </span><br/>
            <span style="font-size:0.8em"> </span><br/>
            {if isset($order_invoice)}{$order_invoice->shop_address}{/if}
        </td>
    </tr>
</table>



[erouvier29]

Addresses remain the same, just as they have been set for the order. Only the label "Delivery address" has been removed from the template. But the address itself is still the one attached to the order, and will differ from one order to another.



I just assumed that the line "Suissi GmbH..." is fixed, but maybe it's not the case. What is actually this line for? Is it relative to the order or globally defined? Is it stored somewhere into the database?

Edited May 23, 2016 by erouvier29 (see edit history)

[Fertig]

another writes maybe its a template issue with overrides, dont know why.



my experiences in database its like a child and fire, not good ... i have no idea from database, php and html a little bit...

[erouvier29]

another writes maybe its a template issue with overrides, dont know why.



 Sorry, I don't understand what you mean

[Fertig]

Hello KerAwen,



thanks for your fast and good support. sorry, i had a little bit work here so i cant write back. ...



so now works after a update and looks very close the that design of invoice i want :-D

[eleazar]

Hi guys,



instead of trial and error in percentage of the table you can easily adjust the margins precisely with a small override of function writePage of /classes/pdf/PDFgenerator.php. Just modify the left margin value in the following code and save it as override/classes/pdf/PDFgenerator.php

<?php

class PDFGenerator extends PDFGeneratorCore
{
public function writePage()

{
$this->SetHeaderMargin(5);
$this->SetFooterMargin(18);
$this->setMargins(10, 40, 10);
$this->SetAutoPageBreak(true, PDF_MARGIN_BOTTOM);

$this->AddPage();

$this->writeHTML($this->content, true, false, true, false, '');
}

}

[nlsweb]

I want to change few thing in the invoice that customer received and we received as a order confirmation



{if !empty($delivery_address)}
<table style="width: 100%">
<tr>
<td style="width: 50%">
<span style="font-weight: bold; font-size: 10pt; color: #9E9F9E">{l s='Delivery Address' pdf='true'}</span><br />
{$delivery_address}
</td>
<td style="width: 50%">
<span style="font-weight: bold; font-size: 10pt; color: #9E9F9E">{l s='Senders Address' pdf='true'}</span><br />
{$invoice_address}
</td>
</tr>
</table>​​





So basically I dont know where $delivery_address and $invoice_address are coming from.



I want to change the way display $invoice_address

i.e. I just want to just show client name and phone number



$delivery_address i just want to delivery person name and address and phone.



Can someone help me that how and where I can change the code.



Thank you
