Images issue after upgrade to 1.6.0.5

[1sweetman]

Hi



Have upgraded to 1.6.0.5 and it is 99% working.



My problem is with multiple images on products - the main image that appears are all fine however the smaller multiple images are only showing as white boxes - I have deleted the images out of one item saved it, refreshed, then re-added images but to no avail.



The images are 'there' if you click on the white boxes.



I have tried to regenerate the images but to no avail.

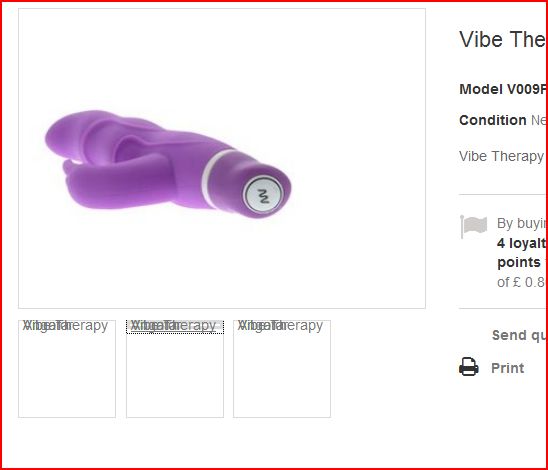

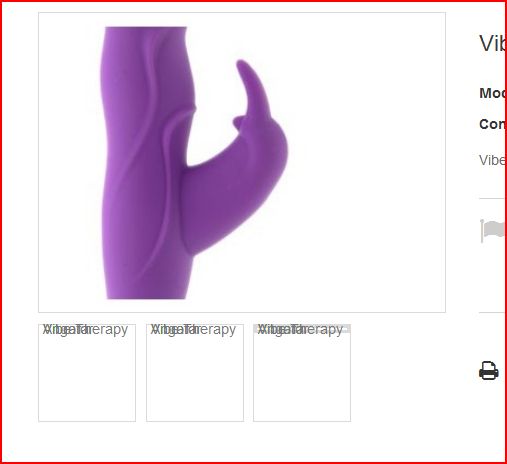

I have attached a few images to show what I mean - the grey 'smudge' at the top of the white boxes is the text description of the image compresses to one line.



Any advice or tips greatfully accepted.



Thanks in advance

[1sweetman]

Update - looks like some of the image sizes didn't migrate/upgrade properly - small is showing as only 10px in height.



Does anyone have a screenshot of the correct settings for default-bootstrap theme so I can adjust them and see if corrects problem.



Thanks

[deuterit]

You can always install default presta and see settings in backend.

Here you have default presta 1.6.0.5 image types (remember to backup your current data before executing these sql):

--
-- Table structure for table `ps_image_type`
--
DROP TABLE IF EXISTS `ps_image_type`;
/*!40101 SET @saved_cs_client     = [spam-filter]character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `ps_image_type` (
  `id_image_type` int(10) unsigned NOT NULL AUTO_INCREMENT,
  `name` varchar(64) NOT NULL,
  `width` int(10) unsigned NOT NULL,
  `height` int(10) unsigned NOT NULL,
  `products` tinyint(1) NOT NULL DEFAULT '1',
  `categories` tinyint(1) NOT NULL DEFAULT '1',
  `manufacturers` tinyint(1) NOT NULL DEFAULT '1',
  `suppliers` tinyint(1) NOT NULL DEFAULT '1',
  `scenes` tinyint(1) NOT NULL DEFAULT '1',
  `stores` tinyint(1) NOT NULL DEFAULT '1',
  PRIMARY KEY (`id_image_type`),
  KEY `image_type_name` (`name`)
) ENGINE=InnoDB AUTO_INCREMENT=10 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `ps_image_type`
--
LOCK TABLES `ps_image_type` WRITE;
/*!40000 ALTER TABLE `ps_image_type` DISABLE KEYS */;
INSERT INTO `ps_image_type` VALUES (1,'cart_default',80,80,1,0,0,0,0,0);
INSERT INTO `ps_image_type` VALUES (2,'small_default',98,98,1,0,1,1,0,0);
INSERT INTO `ps_image_type` VALUES (3,'medium_default',125,125,1,1,1,1,0,1);
INSERT INTO `ps_image_type` VALUES (4,'home_default',250,250,1,0,0,0,0,0);
INSERT INTO `ps_image_type` VALUES (5,'large_default',458,458,1,0,1,1,0,0);
INSERT INTO `ps_image_type` VALUES (6,'thickbox_default',800,800,1,0,0,0,0,0);
INSERT INTO `ps_image_type` VALUES (7,'category_default',870,217,0,1,0,0,0,0);
INSERT INTO `ps_image_type` VALUES (8,'scene_default',870,270,0,0,0,0,1,0);
INSERT INTO `ps_image_type` VALUES (9,'m_scene_default',161,58,0,0,0,0,1,0);
/*!40000 ALTER TABLE `ps_image_type` ENABLE KEYS */;
UNLOCK TABLES;

[1sweetman]

You're right I could have - sorry didn't give it a thought - too tired - been a long week.



Thanks anyway
