Unable to sort properly in attributes

[johnprest99]

On version 1.5.4.1 under catalog-attributes I am unable to sort the attributes by drag and drop. It physically moves them on screen but when you go back it reverts to the old positions. I looked at db and noticed that the table values dont change. This was fine until the list got bigger. I have now about 30 values and something has stopped it from working

[Toeareg]

I did run into that same problem too.

Because I am still testing with 1.5.4.1 it's not too big a problem for me and I was able to help myself with a workaround for now.



If you have a csv file with all your combinations in it, then maybe this procedure is of any help to you too until there is a working solution in PS itself.



This is what I did:

1. I created an empty combinations csv and imported that with the option to delete all existing combinations checked. This also removes the existing attributes/values!!!



2. I then added all required attributes/values via the BO in the exact order in which I want them displayed in the menus and layered navigation block.



3. To be sure, I used phpMyAdmin to backup all attributes tables. Just in case I ever have to repeat the procedure.



4. Now import all combinations via csv again and leave the option to remove existing combinations UNCHECKED. If you check the option your attributes/values will be deleted again and your sort order will be lost.



Now everything is sorted as expected in the front office.

Edited July 31, 2013 by Toeareg (see edit history)

[tomerg3]

It may be related to the PHP setting max_input_size



Try setting it to 10000 in your php.ini file



In case you're not sure what that is, check out http://presto-changeo.tumblr.com/post/17589539698/understanding-php-ini-how-and-why-you-need-one

[benjamin utterback]

Hi tomerg3, do you mean the max_input_vars setting?

[tomerg3]

yes, max_input_vars

[Toeareg]

That did indeed solve part of the problem.

It does change the sort order within the menus, but it has no influence on the sort order in the layered navigation block.



As far as I can see, that is not a problem of the sort order (position) of the attribute values though, but it looks like layered navigation retrieves data ordered by ID instead of ordered by position.

Edited July 31, 2013 by Toeareg (see edit history)

[johnprest99]

Hi that as unfortunately not sorted the problem out. I think this is a bug so will look for a solution on the tracker and see if anyone else has logged it

[tomerg3]

That is the case as far as I am aware, the sort order only affects the front end product page.



Hi that as unfortunately not sorted the problem out. I think this is a bug so will look for a solution on the tracker and see if anyone else has logged it



Did you check using phpinfo() that the max_input_vars was actually changed, as not all hosts read the php.ini file.

[johnprest99]

yeah did phpinfo output. tested in another system now and the attributes screen definitely doesn't work when dragging and dropping. If you use the arrows that seems to work so something on the drag and drop isn't firing off proeprly

[Toeareg]

@johnprest99,

Did you perhaps only add/change the max_input_vars?



I changed these 3 lines:

max_input_vars = 10000;

suhosin.get.max_vars = 10000;

suhosin.post.max_vars = 10000;



That works for me.

[benjamin utterback]

If your hosting provider has the “suhosin” php patch, you will need to change two more values



suhosin.get.max_vars = 10000;

suhosin.post.max_vars = 10000;

[johnprest99]

tried it on local wamp server but nope the problems still persist. One issue I can see in database sometimes the position value is the same for different attributes which I'm guessing shouldn't happen if an array is sorted at the backend

[Toeareg]

That's not an issue. The position only needs to be unique within the list of positions for each attribute.

[benjamin utterback]

I have my install on a local wamp server. I was able to move the filters around in Modules>Layered Navigation>Configuration



I was able to drag and drop, save, and stay saved. This is for both the Attributes in Catalog>Attributes and Modules>Layered Navigation>Configuration



It's very strange that it's not working for you, even after the max_input_vars is changed.

[tomerg3]

You can try using Firefox with Firebug and look at the console.



When you drag and drop, you will see a new request (IE http://screencast.com/t/VsecOlKbtXm )



First see if they return 200 OK, or another code (IE 404 or 500).



Then, you can look at the "Response" tab and see if there are any errors there.

[Toeareg]

I have my install on a local wamp server. I was able to move the filters around in Modules>Layered Navigation>Configuration



I was able to drag and drop, save, and stay saved. This is for both the Attributes in Catalog>Attributes and Modules>Layered Navigation>Configuration



That is not what I meant with "sort order in the layered navigation block" problem.

I have an Attribute "Sizes" which has Values XS,S,M,L,XL,XXL (with ID's 1,2,3,4,5,6 AND positions 0,1,2,3,4,5).

Now my Size select menu shows the attributes in this order AND the layered block Sizes show them in this order too.



But if the attribute values are entered as L,M,S,XL,XS,XXL and I want them to show up as XS,S,M,L,XL,XXL then I need to change the positions which gives this matrix:

Val => ID => Position

XS => 5 => 0

S => 3 => 1

M => 2 => 2

L => 1 => 3

XL => 4 => 4

XXL => 6 => 5



For the Size select menus this works just fine.

But in my block layered navigation, the attribute values are still shown in ID order, so L,M,S,XL,XS,XXL.



That is NOT how this should work.

The block layered navigation should conform to the preferred sort order (positions) just like the menus.



**UPDATE**

I made some changes to modules/blocklayered/blocklayered.php (lines 2677 & 2709) to make the sort order of the attribute values work in block layered navigation as well as in the menus.

Line 2677, added a.position in the SELECT clause:

SELECT COUNT(DISTINCT p.id_product) nbr, lpa.id_attribute_group,
a.position, a.color, al.name attribute_name, agl.public_name attribute_group_name , lpa.id_attribute, ag.is_color_group,



Line 2709, changed the ORDER BY clause from:

ORDER BY id_attribute_group, id_attribute';



to:

ORDER BY id_attribute_group, position';



Now all sorting works like it should

Edited August 1, 2013 by Toeareg (see edit history)

[johnprest99]

Ok weird I get it on both local wamp and a live server the exact problem. Here's my one response and it doesn't look like yours



ok position 6 for attribute 6\r\n

[johnprest99]

anyone have more of a update on this especially as I get different output

[tilki]

SOLVED:..thank you, it works...I need to do the same for manufactures and features values, could you please advise what to change? The best - they will be sorted in alphabetical order.... I can't change their positions in BO (is tha a bug?)

Edited August 4, 2013 by tilki (see edit history)

[Toeareg]

@Tilki,



To get the manufacturers sorted alphabetically open modules/blocklayered/blocklayered.php and look for this string:

GROUP BY p.id_manufacturer

It should be in there twice!



Change them both to:

GROUP BY p.id_manufacturer
ORDER BY m.name ASC



The features have a position, but I have not needed to use another sorting order yet, so I haven't changed the code for that.

But since it requires joining in another table into the query, that's not some code change I can simply dish up from the top of my head.

If you can live with alphabetical sorting of the features, you can take a shortcut and do the same as for manufacturers:

Change

GROUP BY fv.id_feature_value



To:

GROUP BY fv.id_feature_value
ORDER BY fl.name ASC



Make sure to keep all code between the enclosing apostrophs.

Hope that works for you.

[johnprest99]

okay does anyone else have a solution for the catalog attributes screen?

[tilki]

Toeareg

thank you!

[Toeareg]

Ok weird I get it on both local wamp and a live server the exact problem. Here's my one response and it doesn't look like yours



ok position 6 for attribute 6\r\n



That's what I get too when dragging/dropping with Firefox.

But does the DB value not change with it?

[johnprest99]

Not always. sometimes it changes but event hen it wont for example change to the last position event hough that is where it had been dragged to

[Toeareg]

So if you for instance have 30 values for a certain attribute and you drag/drop a value from the top position to the bottom, the correct response for Firebug would be

ok position 29 for attribute xx

and the DB should update all positions for all values because they all move up 1 spot.



Can you check if this happens at all or if there is any inconsistancy in the DB update behaviour?

[johnprest99]

okay looking at the db I can see that when you move it to the last position. The number assigned for example is 131 yet in the db the values at 134 or 135 still exist and do not change their positions. This doesn't happen on a stock prestashop. May be if you delete a value it messes with their structure

[Toeareg]

Could be a possibility.



But do you really have that many attribute values?

Can you post a SQL export from the attributes tables?

[johnprest99]

Toeareg - I have sent you a pm with the sql dump

[Toeareg]

@johnprest99,

You have my reply message in your box.



Just to clarify for the other readers:

I can load and reorder the attributes/values without problems in my test setup. Everything works as it should.



So this looks like it's not a Prestashop issue, but rather an installation issue of some kind.

Maybe there is anybody out there who has more knowledge about setting up apache/php/mysql properly?

[johnprest99]

Thanks Toeareg for all your help. How weird that this problem persists on both a wamp setup and redhat. I shall investigate further and let the community know if anything is found

[benjamin utterback]

Your wamp setup does the same? On a fresh installation? Or is a modified installation?

[johnprest99]

okay guys found this to be the problem. It appears along the way (possibly when values are deleted) the max ordering value for example was 136 when there was only 131 products(when moved last position it would always be 131 but of course db has 136 as last entry hence wrong display on screen). Also some attributes have same order value eg 46 three times I spotted in my db. Once I cleared all these up it works as it should. Appears prestashop can not reconfigure itself after deletes possibly

[kirinMissy]

**UPDATE**

I made some changes to modules/blocklayered/blocklayered.php (lines 2677 & 2709) to make the sort order of the attribute values work in block layered navigation as well as in the menus.

Line 2677, added a.position in the SELECT clause:

SELECT COUNT(DISTINCT p.id_product) nbr, lpa.id_attribute_group,
a.position, a.color, al.name attribute_name, agl.public_name attribute_group_name , lpa.id_attribute, ag.is_color_group,

Line 2709, changed the ORDER BY clause from:

ORDER BY id_attribute_group, id_attribute';

to:

ORDER BY id_attribute_group, position';

Now all sorting works like it should





These work for me. Thank you

Edited October 16, 2013 by kirinMissy (see edit history)

[benjamin utterback]

Would some one explain how to do this for a n00b like myself that does not know about database editing.



I have deleted a few values maybe like 5-10 back in prestashop 1.5 now on 1.6.0.6 i have this problem and have tried everything elese including getting my host to edit my PHP.ini for my VDS.



going insane need to arrange my values





Okay, so have you done anything in your database already. If so, did you make a backup before you did?

[benjamin utterback]

http://www.prestashop.com/blog/en/how-to-manually-back-up-mysql-database-and-prestashop-files/



That should help you backup. Then we can try a solution.

[asmar]

Anyone with a solution to the save issue?

I'm drag and drop values but after doing a refresh they are not saved. Value in php.ini is as suggested.



Any ideas?



Thanks

[gatla2]

That is not what I meant with "sort order in the layered navigation block" problem.

I have an Attribute "Sizes" which has Values XS,S,M,L,XL,XXL (with ID's 1,2,3,4,5,6 AND positions 0,1,2,3,4,5).

Now my Size select menu shows the attributes in this order AND the layered block Sizes show them in this order too.



But if the attribute values are entered as L,M,S,XL,XS,XXL and I want them to show up as XS,S,M,L,XL,XXL then I need to change the positions which gives this matrix:

Val => ID => Position

XS => 5 => 0

S => 3 => 1

M => 2 => 2

L => 1 => 3

XL => 4 => 4

XXL => 6 => 5



For the Size select menus this works just fine.

But in my block layered navigation, the attribute values are still shown in ID order, so L,M,S,XL,XS,XXL.



That is NOT how this should work.

The block layered navigation should conform to the preferred sort order (positions) just like the menus.



**UPDATE**

I made some changes to modules/blocklayered/blocklayered.php (lines 2677 & 2709) to make the sort order of the attribute values work in block layered navigation as well as in the menus.

Line 2677, added a.position in the SELECT clause:

SELECT COUNT(DISTINCT p.id_product) nbr, lpa.id_attribute_group,
a.position, a.color, al.name attribute_name, agl.public_name attribute_group_name , lpa.id_attribute, ag.is_color_group,

Line 2709, changed the ORDER BY clause from:

ORDER BY id_attribute_group, id_attribute';

to:

ORDER BY id_attribute_group, position';

Now all sorting works like it should



HI

 excuse me for my bad english but does n work in prestashop 1.6.0.8.  have u sollution?

[Toeareg]

No sorry, I have just installed 1.6 yesterday and I will need some time to get acquainted with this version.

[Pete78]

I had the same issue on a customer database:



Reason was, that several values in a group had the same position values. This can come from a bad import or somehow else..



This worked for me: Add a test attribute to this group and delete it right aways. Deletion will clean up positions in the table and the values should be allright again..



Hope this helps

[robertocommerce]

Hi, i have prestashop 1.6.0.13 by I can not sort the attributes by alphabetically Name



I have many attributes and would like to show in order, I tried to put the line

ORDER BY agl.`id_attribute_group`, al.`name` ASC';

in place of

ORDER BY id_attribute_group, id_attribute ';

but not work!

can someone help me?

[andrej981]

Hi,

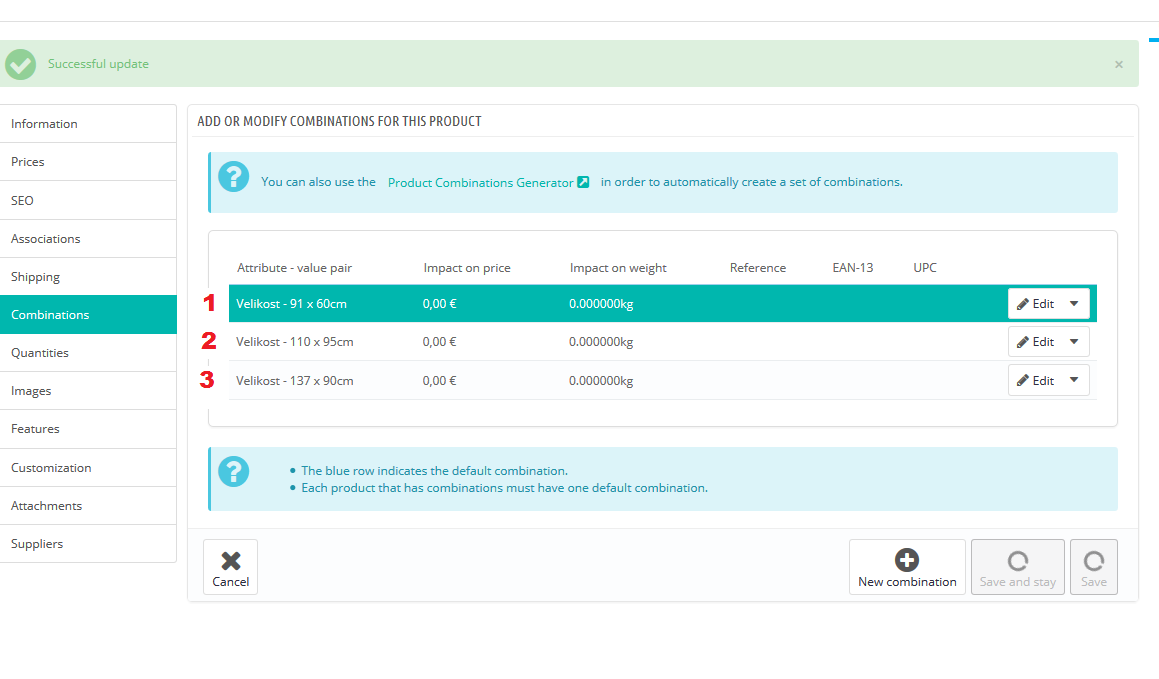

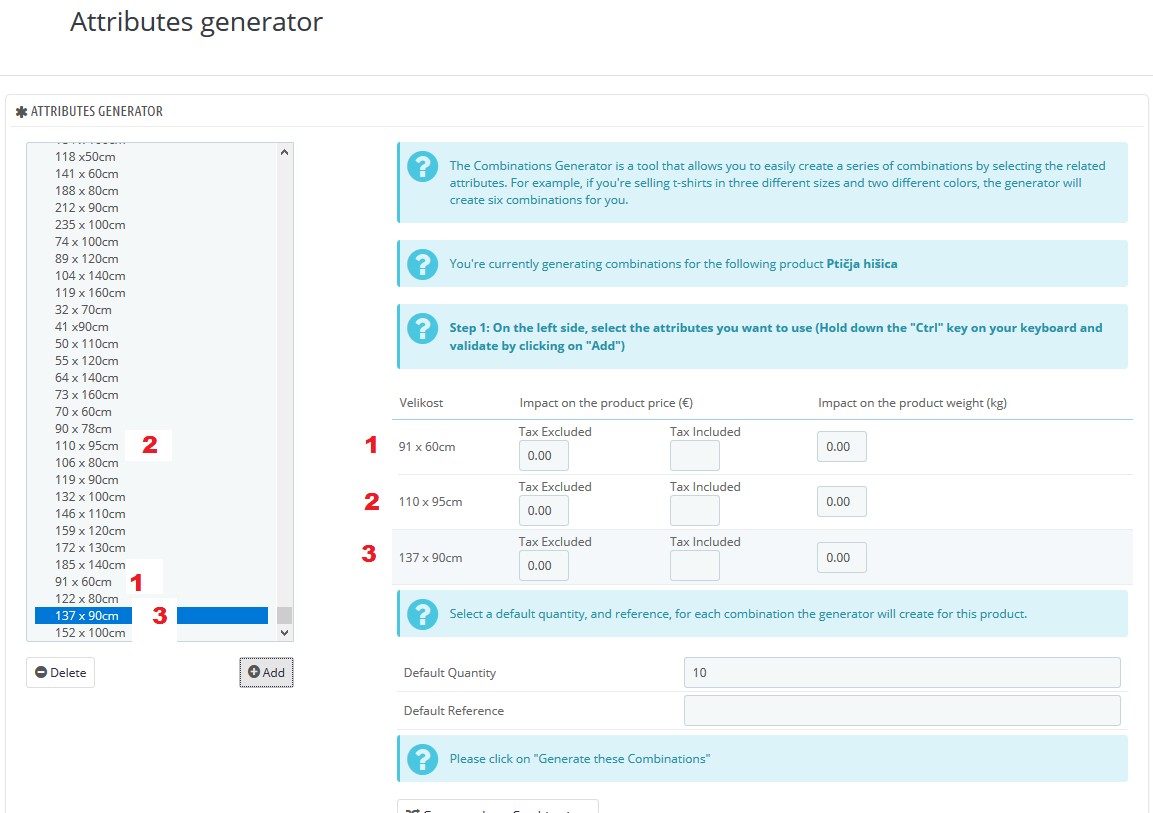

I have a problem with sorting product attribute. In BO size is list in order that I added it with combination generator.

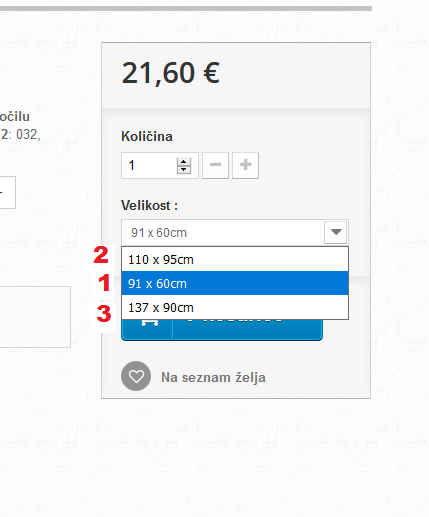

But in front ofice attributes are not in same order like in BO.

Problem is that if I choose size which I already add for product before, prestashop place ¨"old" size first and then new created size. But only in FO in BO they are just like they have to be.

Examlpe:

BO 100 x 100cm   (add second)

BO 110 x 110cm    (add first)



FO 110 x 110cm  (add first)

FO 100 x 100cm  (add second)



 My prestashop version is 1.6.1.4. Can someone please help me with this?
